Garmin GT41-THP

Discontinued

Part Number 010-01964-11

ONLINE STORE

Fitur
Fungsi
Spesifikasi
Isi Dalam Kotak
Perbarui
Aksesori
Cocok untuk mesin

Perfect for the coastal and offshore fisherman who want traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull mounted transducers consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below and to each side of your boat.

The CHIRP ClearVü/ SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional sonar has a power rating of 600 W and operating frequencies of 50/200 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.

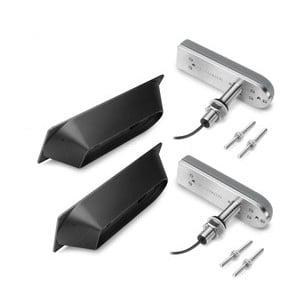

GT41-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Terkait

General
FREQUENCY	Traditional (50/200 kHz); ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
POWER	Traditional 600 W; ClearVü/SideVü 500 W
BEAMWIDTH	Traditional: 40°/10° ClearVü/SideVü: 2.0°x51° @ 260 kHz and 1.4°x29° @ 455 kHz
MAXIMUM DEPTH	Traditional: 1,500 ft.; ClearVü: 1,000 ft.; SideVü: 750 ft.
DEPTH/SPEED/TEMPERATURE	Depth and Temperature
NUMBER OF PINS	12-pin
CABLE LENGTH	5 ft. + 30 ft. y-extension cable
SUPPORTED DEADRISE/TRANSOM ANGLES	Up to 25° deadrise
