STRIKER™ 4cv

Part Number 010-01551-00

ONLINE STORE

Fitur
Spesifikasi
Isi Dalam Kotak
Perbarui
Aksesori
Cocok untuk mesin

3.5-inch CHIRP Fishfinder with GPS and ClearVü Scanning Sonar

Easy-to-use 3.5-inch color fishfinder with built-in, high-sensitivity GPS and Garmin CHIRP ClearVü™ scanning sonar
Find fish; mark and return to hot spots, docks and ramps
Includes Garmin transducer with CHIRP (77/200 kHz); transmit power (300 W RMS)/(2,400 peak-to-peak) with 455/800 kHz CHIRP ClearVü (300 W power)
Upgrade to high-performance CHIRP with a GT22 or GT23 transducer (each sold separately)

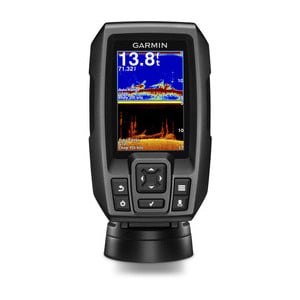

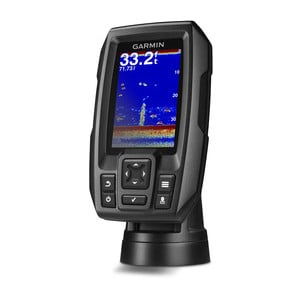

Finding fish is easier than ever with STRIKER 4cv fishfinder. Mark and return to your hot spots, boat ramps and docks. You also can share your favorite waypoints and routes with other STRIKER and echoMAP™ combos. Plus, it has a built-in flasher and displays speed data. Includes tilt/swivel mount, CHIRP (77/200 kHz) sonar transducer with transom and trolling motor mounting hardware and cable. For high-performance CHIRP, purchase a GT22 or GT23 transducer (each sold separately).

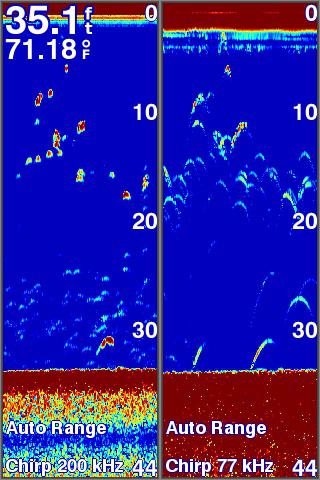

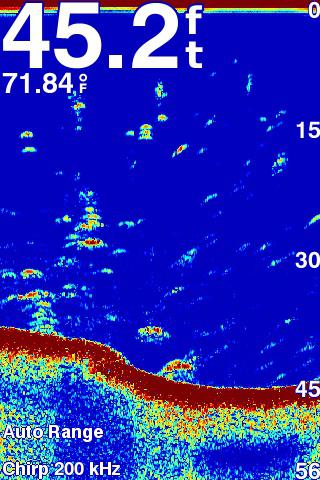

Experience the Clarity of CHIRP

STRIKER 4cv includes a Garmin CHIRP (77/200 kHz) transducer, which provides a visibly higher level of clarity and detail for fish and structure than traditional 77/200 kHz transducers.

Instead of sending just 1 single frequency, CHIRP sends a continuous sweep of frequencies, ranging from low to high, then interprets them individually upon their return. Since the frequencies provide a wider range of information, CHIRP sonar technology can create crisper fish arches with greater target separation.

You also can upgrade to high-performance Garmin CHIRP technology, which provides crystal-clear sonar images with even more remarkable target separation and resolution from shallow to deeper depths. For better fishing, bottom contours are more visible, even at higher speeds, and signal noise can be suppressed at greater depths to provide a more timely interpretation of what’s below.

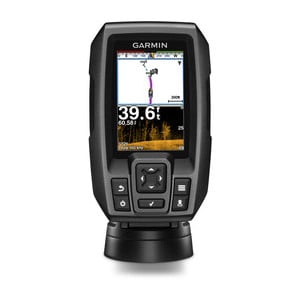

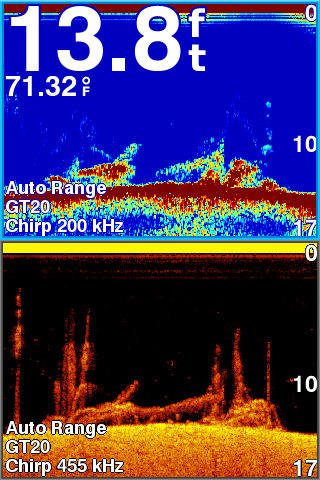

Clearest Scanning Sonar on the Water

Garmin ClearVü scanning sonar gives you a nearly photographic image of what passes 750 feet below your boat. You clearly see structure, submerged objects and fish. Traditional Garmin CHIRP sonar and CHIRP ClearVü scanning sonar are combined into 1 transducer.

Mark Spots with High-sensitivity GPS

Unlike regular fishfinders, STRIKER fishfinders have built-in, high-sensitivity GPS to locate your current position quickly and precisely, then maintain your GPS location anywhere you go on the lake. More importantly, they allow you to mark spots where the fish are biting so you can return to them again in the future. You also can mark docks, boat ramps and other locations on the lake. Just follow the path created on your screen to return to them whenever you wish.

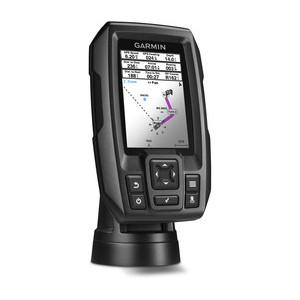

Navigate Easily with Waypoint Map

Since the STRIKER fishfinder series includes high-sensitivity GPS, you can see your position in relation to waypoints you have marked. Use the waypoint map to easily view, mark and navigate to locations such as brush piles, stumps and docks. It’s also a great tool for finding your way back to the boat ramp.

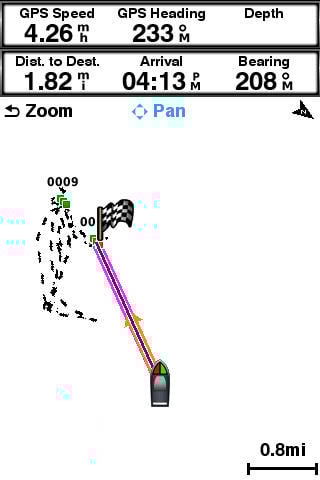

Check Your Speed on Screen

You can quickly and easily see your boat’s speed on the screen of your STRIKER fishfinder. It’s a great tool to make sure you are trolling at the right speed for the lure you’re using and for a particular fish species. It’s also a good way to tell if you are going the right speed in wake-controlled areas.

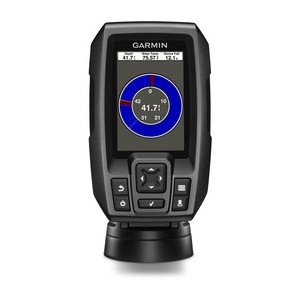

Fish Vertically with Built-in Flasher

STRIKER provides you with both a fishfinder and flasher all in 1 unit. Anytime you are stationary fishing, such as ice fishing or jigging for crappie, the built-in flasher will show you the bottom, whether it is solid or muddy, your jig or weighted bait, and the depth of fish as they swim into the sonar beam. You can even watch how high your jig is being lifted and dropped and whether fish move toward or away from it.

Take Your Fishfinder Anywhere

A portable kit is available to protect and carry your STRIKER fishfinder with GPS, so it’s perfect for kayak, canoe or ice fishing. It includes a sealed, rechargeable battery with charger, built-in transducer cable management and storage and suction cup transducer mount and float.

Terkait

Physical & Performance
Physical dimensions	3.6'' x 5.9'' x 1.6'' (91.6 x 150.8 x 42.8 cm)
Display size, WxH	1.9'' x 2.9'' (4.9 x 7.3 cm); 3.5'' diag, (8.7 cm)
Display resolution, WxH	480 x 320 pixels
Display type	HVGA color
Weight	8.1 oz (230g)
Water rating	IPX7
Audible alarms

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Frequencies supported	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
Transmit power	300 W (RMS)
Maximum depth	1,750 ft freshwater, 830 ft saltwater
Bottom lock (shows return from the bottom up)
Water temperature log and graph

Fishfinder Features
Split-screen zoom
Ultrascroll® (displays fish targets at higher boat speeds)
Fish Symbol ID (helps identify fish targets)
AutoGain Technology (minimizes clutter, maximizes targets)
Adjustable depth line (measures depth of underwater objects)
A-scope (real time display of fish passing through transducer beam)
Water temperature sensor included

Additional
Additional	Titl/swivel mount Integrated GPS Mark Waypoints Course over ground (COG)

STRIKER 4cv
transducer
Transom and trolling motor mounts
Tilt/swivel mount
Power cable
Documentation
